JetCat P250PRO-S V2 RC Kit
In stock
JetCat PRO Turbines
The JetCat PRO turbines offer the highest level of integration and maximum installation flexibility. All system components required for turbine operation are fully integrated beneath the turbine cowling. Apart from the supply battery, the fuel tank and the control signals, no further external subsystems are required!

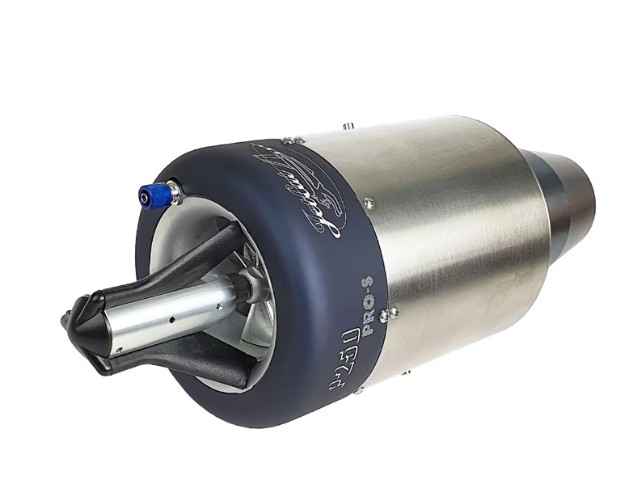

JetCat P250PRO-S
The new P250-PRO-S is particularly suitable for large models in the 25 kg class, 3D sport jets and industrial applications. The completely new kerosene start-up system impresses with start-up times of well under 20 seconds. Sensational thrust-to-weight ratio with a total system weight of all components (turbine, Pro-Interface, mounting clamps) of less than 2300g. Installation effort is kept to a minimum as the ECU, pump, valves and filter are fully integrated into the turbine. Connection to the RC system is via our PRO Interface, which provides additional interfaces such as: telemetry (Jeti, Graupner Hott, Multiplex, Futaba), GSU connection, airspeed sensor, CAN-bus interface, RS232 interface, twin-engine cross-check and online software updates.
JetCat PRO Turbine Features
Innovative kerosene start-up system: no pre-heating, no wear-prone glow plug, minimal power consumption for the ignition system (just a few mA).
The turbine fires within 1.5 seconds of the start command and is ready for idle operation after typically 15 seconds (20 seconds max.).
Capable of in-flight restart (manual or automatic)
High-power brushless starter
Brushless fuel pump
Fully automatic fuel priming function. The system automatically detects as soon as fuel is present at the pump or has been drawn in. Manual priming of the fuel lines is no longer necessary.
Barometric altitude/pressure sensor, for automatic turbine tuning to operating altitude.

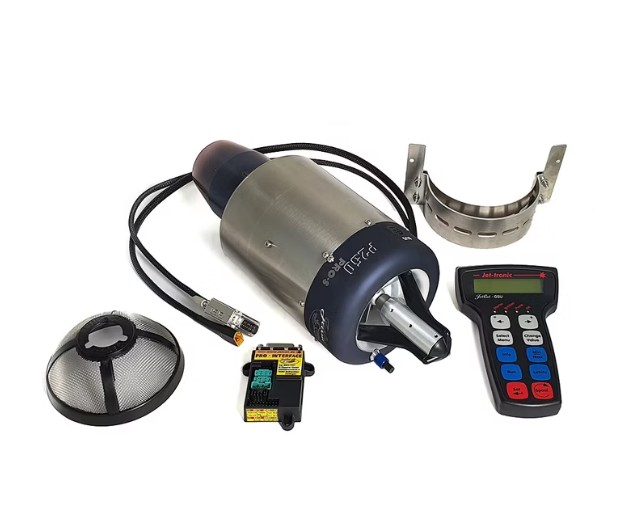

Set contents
JetCat P250-PRO-S set comprising:
1x
JetCat P250-PRO-S
71152-0270
1x
Turbine mounting clamp
41152-0248
1x
JetCat PRO interface
61168-0010
1x
JetNet
61128-0052
1x
Mini GSU Remote Controller
61161-0000
Technical Specifications
Pressure ratio
3.8
Mass flow (kg/s)
0.47
Fuel consumption at full load (ml/min)
820
Fuel consumption at idle (ml/min)
138
Weight [g]
2155
Dimensions/diameter (mm)
121
Length (including starter) (mm)
322
Weight of set in box (g)
3290
Carton dimensions (LxWxH; cm)
Exhaust gas temperature (°C)
480–750
Idling speed (rpm)
35,000
Maximum speed (rpm)
117,000
Idle thrust (N)
11.8
Thrust @ max rpm (N)
250
Exhaust gas velocity (km/h)
1860
Jet power (kW)
75
SFC @ max Rpm (kg/Nh)
0.158
